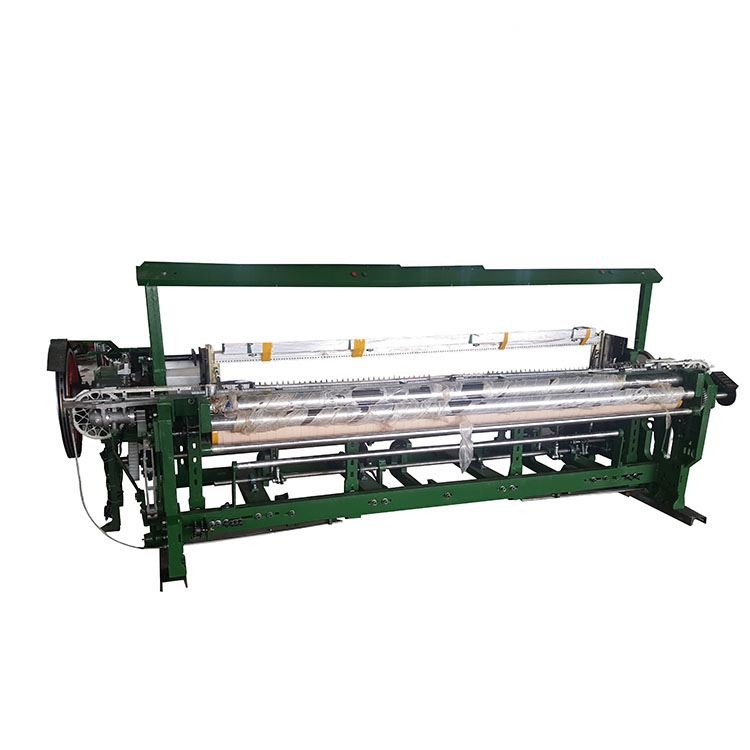

Shuttleless fiber glass insect screen wire weaving machine with selvage
specification:
Model | Speed | Capacity | Width of products | Mesh size | Power | Dimension |
ZWJ-1000 | 150-180rpm | 30-80 m2/h | 1000mm | 3*3—10*10 | 0.8kw | 1600x2500x1500mm |
ZWJ-1300 | 150-180rpm | 30-75 m2/h | 1300mm | 3*3—10*10 | 0.8kw | 1600x2800x1500mm |
ZWJ-2550 | 100-130rpm | 60-140 m2/h | 200mm | 3*3—10*10 | 1.5kw | 1800x4200x1600m |
Fiberglass mesh weaving machine is a process of glass fiber materials, woven mesh, fiber glass safety net, wall protection network, mosaic backing with glass fiber mesh equipment. this machine can produce 1m, 1.2 m, 1.5 m, 2.0 m, 2.3 m, 2.4 m kinds of width specifications; mesh density is adjustable between 4 and 12 .
1) Simple structure in linear type ,easy in installation and maintation.
2) Flat surface
3) Homogeneous mesh
4) Running in a high automatization and intellectualization,no pollution
5) Highest output in the market,Low energy consumption
